WaveBot-II — Catamaran Uncrewed Surface Vessel
A compact, stable and highly efficient catamaran-type USV designed for hydrographic surveys and surveillance missions. WaveBot-II supports both autonomous and manual navigation, integrates multiple payloads and streams real-time telemetry over 5G or radio link for precise mission execution.
Overview

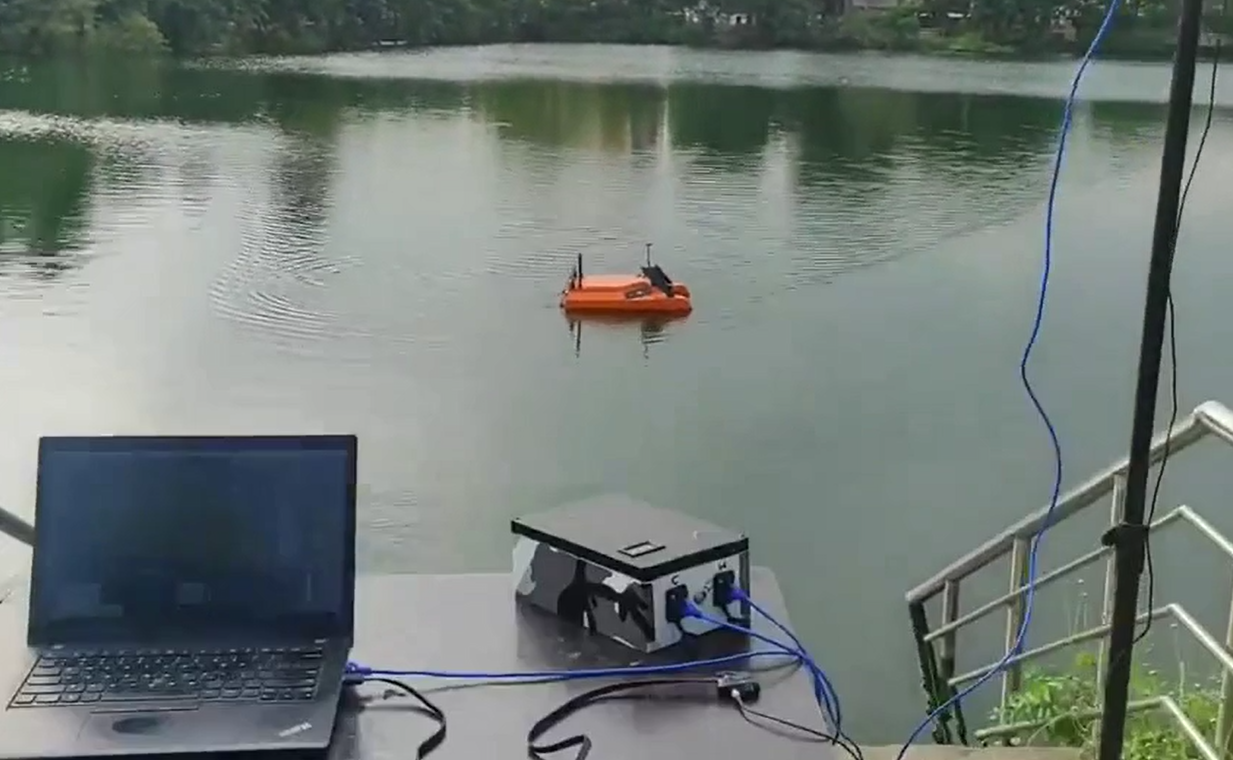

WaveBot-II is an advanced Uncrewed Surface Vessel engineered for hydrographic survey, environmental monitoring and surveillance operations. Designed with a catamaran hull for superior stability, it supports interchangeable payloads depending on mission needs. The onboard autonomy system enables smooth switching between autonomous and manual control modes using a GUI running on a base-station laptop.
The vessel streams live telemetry—including GNSS position, heading, path tracking and battery status—via a high-speed 5G or RF link. Operators can transition instantly to manual control using a high-power remote system, offering up to 2.5 km range. With up to 6 hours endurance, WaveBot-II is ideal for extended field deployments.
Technical Specifications
| Dimensions | 0.82 × 0.5 × 1.2 m |
|---|---|
| Survey Speed | 2–3 knots |
| Draft | 0.15 m |
| Hull Material | GFRP |
| Payload Capacity | 15 kg |
| Endurance | 6 hours @ 2 knots |
| Range | 0.5–2 km (optional) |
| Mode | Autonomous + Remote Control |
| Collision Avoidance | LiDAR |
| Battery | 2 × 40 Ah Li-ion (with voltage display) |
| Payload Mount | Through-hull, modular |
| Onboard Computer | Core i3, 8 GB RAM |
| RTK GNSS | Centimetre-level accuracy |
| Connectivity | 5G + Radio Link RC |
| Camera | 2 MP PTZ IP Night-Vision Camera |
| Ground Station Software | QGCS / Mission Planner |
| Ground Control Station | 14″ Laptop (Core i3) |
Payload & Sensor Options
- LiDAR-based collision avoidance
- 2 MP PTZ night-vision camera
- Hydrographic survey payloads
- Environmental monitoring sensors
- RTK GNSS navigation system
- Custom payload integration on request
Key Capabilities
- Stable catamaran hull for superior hydrodynamics
- Autonomous waypoint navigation with real-time map display
- High-speed 5G telemetry and battery tracking
- Instant manual override using long-range RC link
- 6-hour operational endurance for extended missions
- Supports multiple modular payloads
- Ideal for survey, surveillance and research operations
